1DI+1DO LoRa Wireless Multi-Node I/O Sync Module

I/O Sync Module、、、、

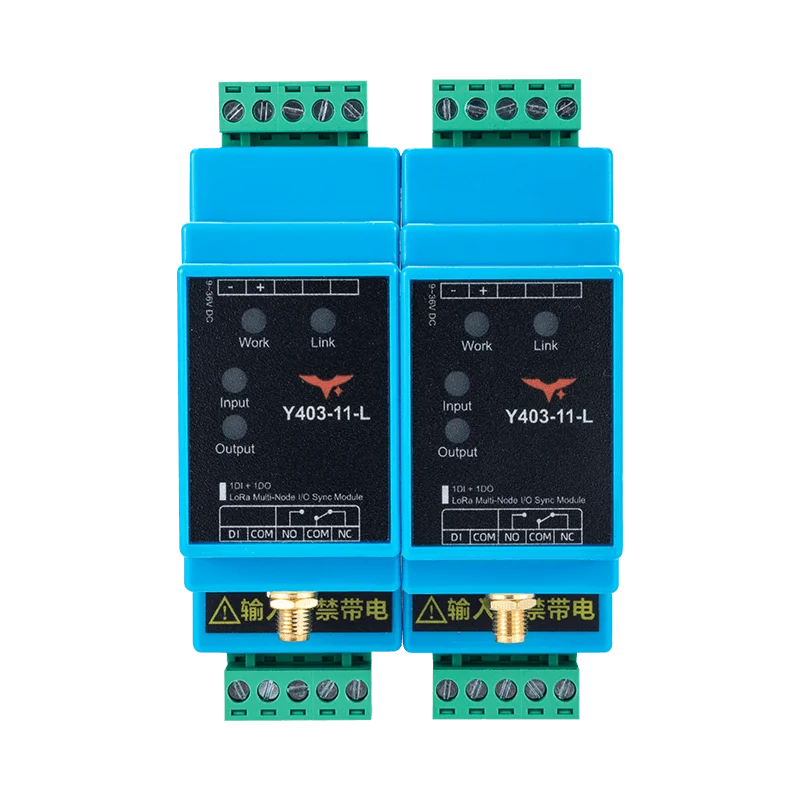

Y403-11-L Mesh LoRa Linkage Controller

Model: Y403-11-L

Key Features

  • LoRa mesh node relays 1DI/1DO events across unlimited peers automatically

  • Self-healing routing selects the best path through tunnels or obstacles

  • Any node input latches all relay outputs until every input releases

Buy Now

Overview

Self-organizing LoRa linkage controller that relays a single digital input across unlimited nodes so every relay follows any node in the mesh.

Key Features

  • LoRa mesh node relays 1DI/1DO events across unlimited peers automatically

  • Self-healing routing selects the best path through tunnels or obstacles

  • Any node input latches all relay outputs until every input releases

  • 9–36 VDC supply, reverse polarity guard, DIN rail clip, LED indicators

Specifications

WirelessFrequency Band398~525 MHz
Range5000 m per hop (extended via relay)
AntennaSMA connector, 470 MHz magnetic antenna
TopologyMesh network with automatic relay
Power SupplyVoltageDC 9~36V
Max Power0.8 W
Operating Temperature-20°C ~ +85°C
Humidity10~90% RH
Digital InputsChannels1
TypeDry contact or NPN input
Digital OutputsChannels1
TypeSPDT relay
RatingAC 250V 5A / DC 28V 5A
MechanicalDimensions88 × 37 × 59 mm
Weight≈50 g
Mounting35 mm DIN rail
ProtectionIP20
