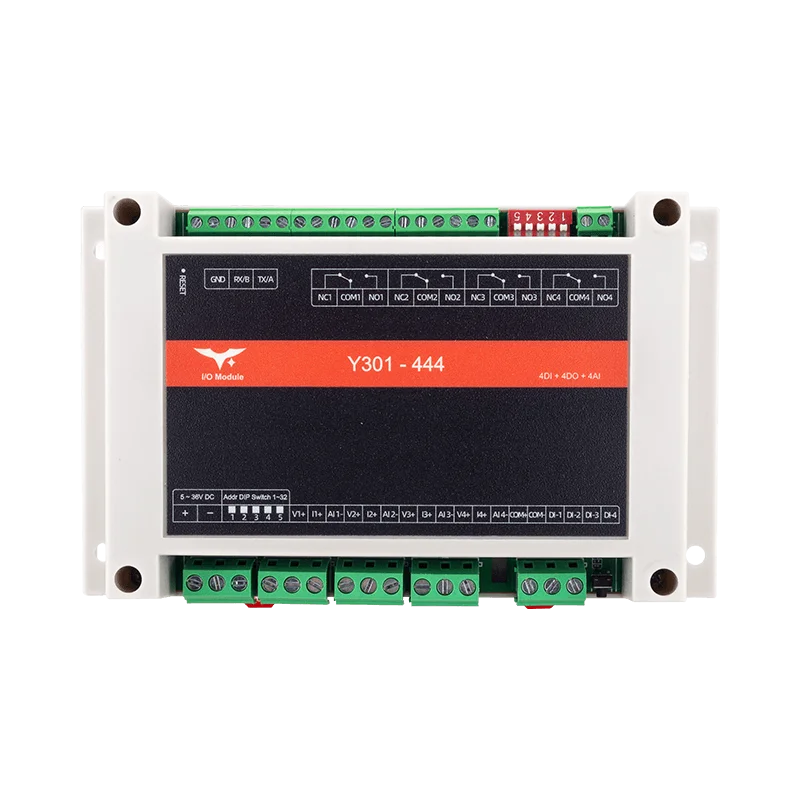

Y301-444 4DI+4DO+4AI Modbus I/O Module

Model: Y301-444

Key Features

  • 4DI + 4DO + 4AI combines relay control with 12-bit analog feedback

  • AI channels support 0–10 V or 4–20 mA with per-channel calibration and status bits

  • Automation allows DI/AI driven DO logic, timers, and remote overrides

Buy Now

Overview

Hybrid Modbus-RTU module that combines four opto-isolated inputs, four 10A relays, and four high-accuracy analog inputs for process-driven automation.

Key Features

  • 4DI + 4DO + 4AI combines relay control with 12-bit analog feedback

  • AI channels support 0–10 V or 4–20 mA with per-channel calibration and status bits

  • Automation allows DI/AI driven DO logic, timers, and remote overrides

  • 9–36 VDC supply, DO retention, RS485 Modbus-RTU/ASCII with DIP addressing

Specifications

Power SupplyVoltageDC 5~36V
Typical Current220 mA @ 12V
Max Current300 mA @ 12V
Operating Temperature-40°C ~ +85°C
Humidity5~95% RH
Digital InputsChannels4
TypeDry/wet contact, optically isolated
Voltage Range5~36V (wet mode)
Sampling Rate100 Hz
Pulse Counter32-bit, rising/falling selectable
Debounce5–255 ms (default 50 ms)
Digital OutputsChannels4
TypeSPDT relays
Contact RatingAC 277V 10A / DC 28V 10A
Minimum LoadAC 10V 10 mA
Switching Time
State RetentionNone / soft reboot / full retention
Analog InputsChannels4
Modes0–10V / 0–5V / 4–20 mA selectable
Accuracy±1% FS
Resolution16-bit
Sampling Rate10 Hz per channel
CommunicationInterfacesRS485 (default), RS232, TTL optional
ProtocolModbus-RTU slave
Baud Rate600–230400 bps (default 9600)
Slave Address1–255 (software) + DIP offset 0–31
MechanicalDimensions145 × 90 × 40 mm
Mounting35 mm DIN rail or screw slots
ProtectionIP20, UL94 V-0 enclosure
