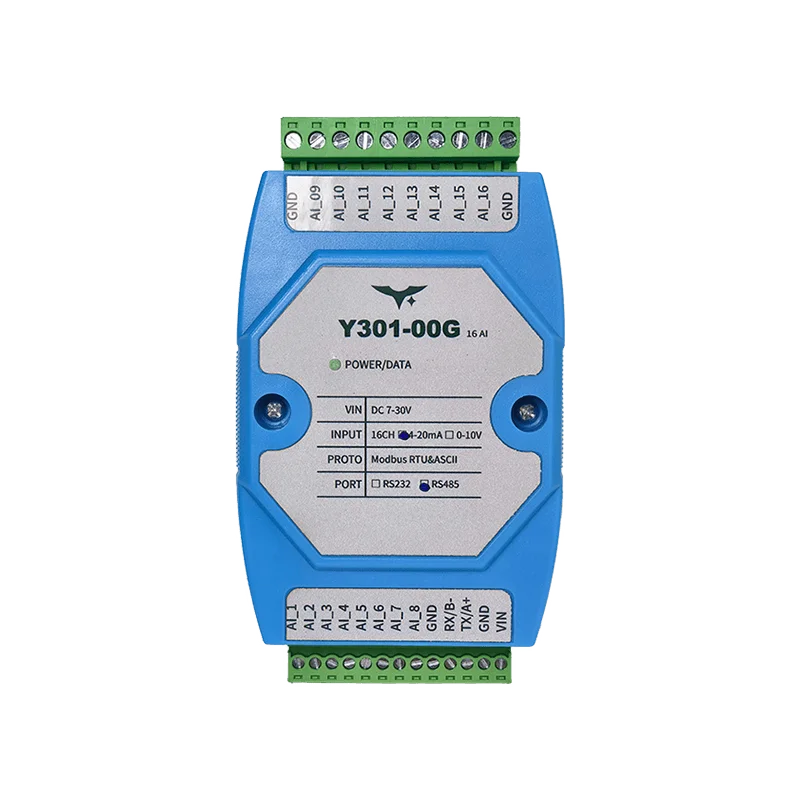

Y301-00G 16AI Modbus Analog Input Module

Model: Y301-00G

Key Features

  • Sixteen analog inputs selectable for 0–10 V or 4–20 mA sources

  • 12-bit ADC with ±0.2% FSR accuracy and programmable averaging

  • Status bits flag open loop, overflow, and calibration state per channel

Buy Now

Overview

High-density Modbus-RTU analog input concentrator with sixteen 0–10 V / 4–20 mA channels for telemetry, HVAC, and process monitoring.

Key Features

  • Sixteen analog inputs selectable for 0–10 V or 4–20 mA sources

  • 12-bit ADC with ±0.2% FSR accuracy and programmable averaging

  • Status bits flag open loop, overflow, and calibration state per channel

  • 7–30 VDC power, reverse polarity protection, RS485 Modbus-RTU/ASCII

Specifications

Power SupplyVoltageDC 7~30V
Typical Power
ProtectionReverse polarity
Operating Temperature-40°C ~ +85°C
Humidity5~95% RH
Analog InputsChannels16
Resolution12-bit
Modes0–10V or 4–20 mA
Accuracy±0.5% FS typical
ScalingActual value = register × 0.001
CommunicationInterfacesRS485 (A/B/GND) or RS232 (TX/RX/GND)
ProtocolModbus RTU / ASCII
Baud Rate2400/4800/9600/19200/38400 bps (9600 default)
Slave Address0~255 (broadcast 254)
Cable LengthRS485 up to 1200 m @ 9600 bps
MechanicalDimensions100 × 70 × 35 mm
Mounting35 mm DIN rail
ProtectionIP20, UL94 V-0 enclosure
