6-Channel Analog Output Module

I/O Module、、、、、

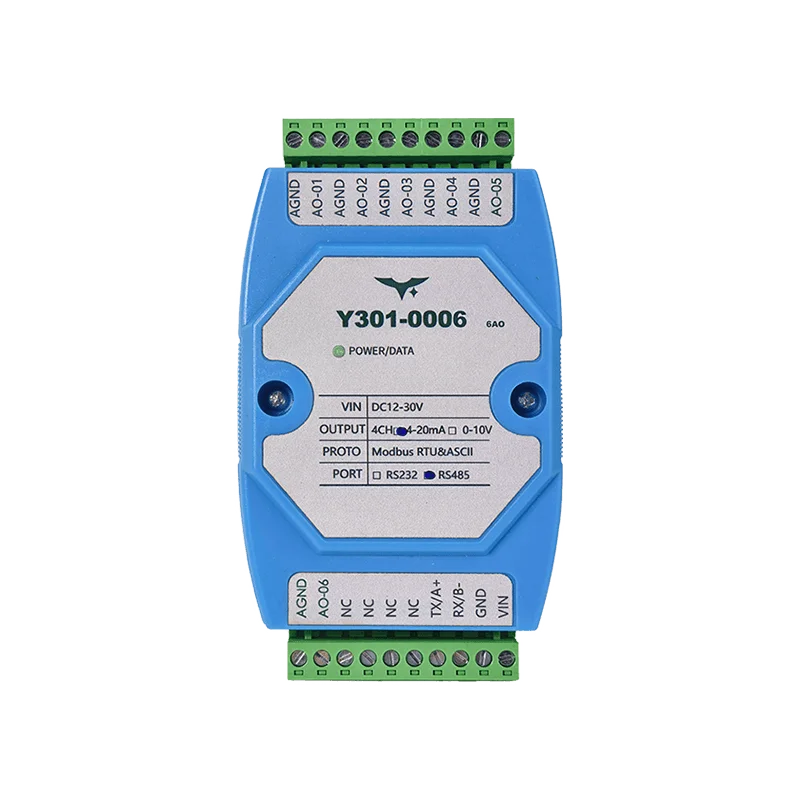

Y301-0006 6AO Modbus Analog Output Module

Model: Y301-0006

Key Features

  • Six analog outputs deliver 0–10 V or 4–20 mA with 12-bit resolution

  • Supports per-channel ramp, hold last, or preset safe value on fault

  • Register ×0.001 scaling plus multi-point calibration

Buy Now

Overview

Modbus-RTU analog output concentrator with six 14-bit channels delivering 0–10 V or 4–20 mA signals for medium-size process skids and automation cells.

Key Features

  • Six analog outputs deliver 0–10 V or 4–20 mA with 12-bit resolution

  • Supports per-channel ramp, hold last, or preset safe value on fault

  • Register ×0.001 scaling plus multi-point calibration

  • 7–30 VDC input, reverse polarity protection, RS485 Modbus-RTU/ASCII

Specifications

Power SupplyVoltageDC 12~30V
Typical Current≈15 mA @ 24V
Operating Temperature-40°C ~ +85°C
Humidity0~95% RH
Analog OutputsChannels6
Resolution14-bit
Voltage Mode0–10V (0–10000 code)
Current Mode4–20 mA (4000–20000 code)
Accuracy±0.03% FS @25°C
CommunicationInterfacesRS485 (A/B/GND) or RS232 (TX/RX/GND)
ProtocolModbus RTU / ASCII
Baud Rate2400–115200 bps (9600 default)
Slave Address1–255 (broadcast 254 reserved)
MechanicalDimensions100 × 70 × 35 mm
Mounting35 mm DIN rail
ProtectionIP20, UL94 V-0 enclosure
